Single Station Linear Full Servo Screen Printing Machine For Medical Measuring Cups

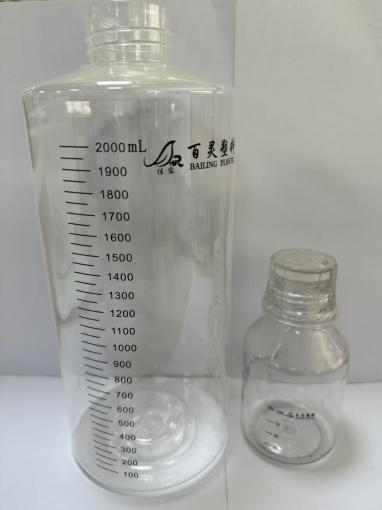

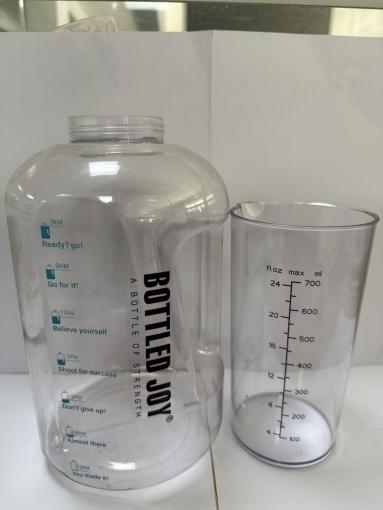

This single-station linear full servo screen printing machine is specially designed for round glass bottles and plastic bottles. It realizes automatic feeding, electrostatic dust removal, servo printing, LED curing and automatic unloading after manual placement of products on the conveyor belt. Featured with fast printing speed, stable and reliable quality, as well as convenient and fast debugging, it is an ideal choice for round product printing.

First, manually place the workpieces on the feeding conveyor belt, which transports them to the bottle clamping position of the manipulator. The manipulator clamps the printing products, rotates and transfers them to the positioning station via servo drive for automatic clamping. The servo system drives the tooling positioning system to realize precise positioning, and then the manipulator automatically transfers the workpieces to the printing station. The servo-driven screen device moves to complete printing, followed by LED curing. The unloading manipulator clamps the workpieces and transfers them to the unloading conveyor belt via servo drive for unloading.

The manipulator is composed of servo motors, cylinders and other components. During the operation of the equipment, relevant parameters of the machine can be changed at any time through the touch screen, and the working status of the machine can also be monitored online.

• All structural designs of the equipment refer to international mechanical standards and integrate European and American automatic mechanical equipment design concepts.
• Adopt advanced programmable logic controller (PLC) and touch screen operation display control system, with convenient and flexible debugging, high automation, simple and fast parameter setting, and easy man-machine dialogue.
• The machine combines mechanical transmission and pneumatics, and adopts photoelectric sensor induction limit control, which ensures stable and reliable operation, high printing precision and high-quality printing effect.
• Equipped with automatic detection functions such as no-printing without parts, no-material alarm, low air pressure alarm, overload alarm and loading/unloading fault alarm, so as to ensure the continuity and stability of the whole machine operation.
• The main frame of the product is made of high-quality steel welding, with aluminum alloy profiles matched with transparent organic glass protective cover, which reflects humanization and operation safety in appearance design and meets European safety standards. The feeding and unloading conveyor mechanisms can be lengthened or shortened according to the specific requirements of the equipment user.
• The design of the main machine part absorbs the workpiece transmission and driving mode of European and American imported machines, ensuring the stability of workpiece transmission and the accuracy of position when the equipment is working.
• The pneumatic components and electrical components used in the equipment are all well-known brands such as SMC, Schneider and Omron, optimizing quality and ensuring performance.
• Screen printing function: single-color printing.
• The display screen is installed on the column.
• The machine is controlled by programmable logic controller (PLC).
• The up and down movement of the bottle is driven by a screw (servo motor, Taiwan-made screw) with a 10-year quality guarantee.
• The front and rear stroke of the brush is adjustable, adopting a positioning block with buffer.
• Bottle loading adopts servo motor and screw.
• The left and right stroke of the brush can be adjusted on the control screen.
• The movement of the upper and lower bottle clamps is driven by a servo motor with a 10-year quality guarantee.
• The downward movement of the brush is operated by an air cylinder.
• The upper and lower bottle clamps are SMC products.
• The speed of the conveyor belt is adjustable.
• It can realize printing on round bottles.

• Pneumatic components: SMC (Japan) / AirTAC (China)
• PLC: Omron (Japan) / Inovance (China)
• Photoelectric sensor: Omron / Keyence (Japan)
• Electrical components: Schneider (Germany) / Omron (Japan)

• Conveyor belt width: 200MM
• Loading and unloading position: U-shaped structure
• Printing stroke: 500mm
• Compressed air: 0.5-0.6Mpa
• Printing speed: 1200-1500pcs/hr for round bottles (subject to actual products)
• Printing size: round diameter φ20-φ150mm
• Machine size: Length/Width/Height L2800*W2500*H1800mm
• Power supply: Single machine 380VAC, 3-PHASE, single machine 6.5KW
