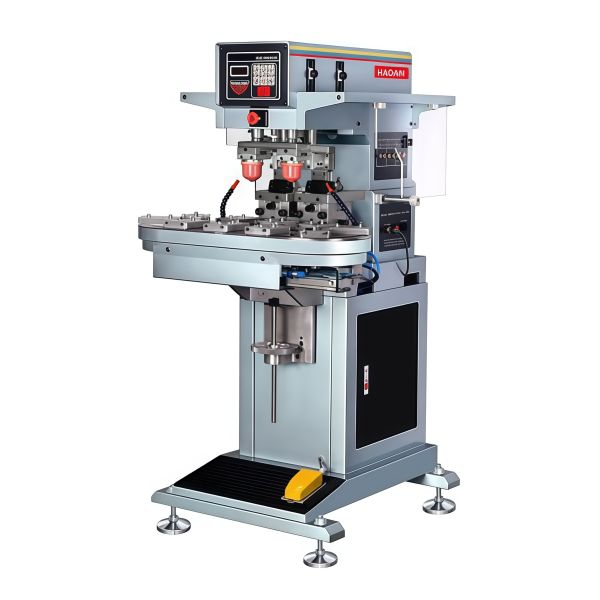

2 Colors Oil Basin Type Semi Automatic Pad Printing Machine
Designed for printing on hardware and plastic products, this semi-automatic pad printing machine offers efficient two-color printing capabilities with advanced control systems.
Product Features
This two-color pad printing machine series features an oil basin type oil supply system and microelectronic keyboard control interface with independent adjustment of pad vertical stroke and speed. Equipped with a worktable adjustable in X, Y, Z axes and angle, it offers wide application range, high printing efficiency, and simple operation.

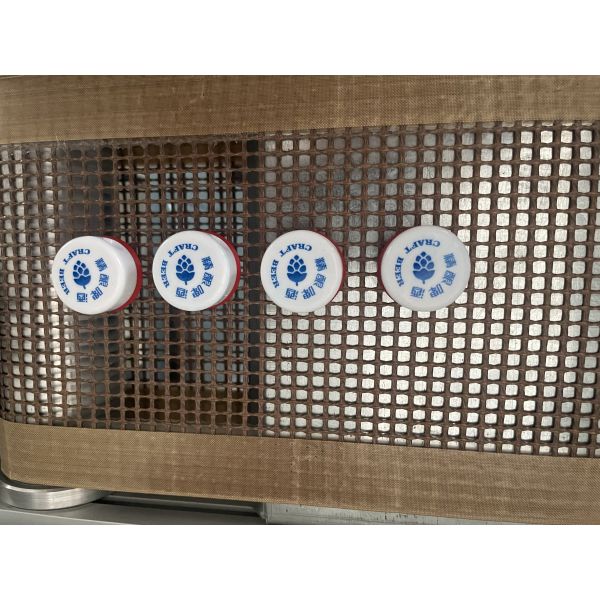

Capable of meeting graphic printing requirements for different printing environments (flat, curved, irregular surfaces), it is widely used in electronics, electrical appliances, hardware, plastic, toys, stationery, and other industries.
Construction & Build Quality
The rack is constructed from thickened square tubes ensuring structural sturdiness, with a baked paint surface that provides a smooth and bright finish. The chassis is made of cast aluminum, and all accessories undergo CNC machining and oxidation treatment for an elegant appearance and durability.
Oil Supply System
The oil basin type oil supply system features a large printing area, convenient installation and disassembly, and greater operational flexibility. Prepared printing ink can be directly poured into the oil basin for printing, simplifying the operational process.
Two-Color Swivelling Belt Table
Main components of the two-color swivelling belt table are made of die-cast aluminum alloy for strength and durability. Grinding-grade slide rails and innovative positioning design ensure accuracy in multi-color and overprinting applications. German-quality precision pneumatic components provide powerful driving force, while dedicated pushing systems and shock absorption devices guarantee stable and reliable operation with smooth printing, high accuracy, and efficient production.
Technical Specifications
| Item | Specification |
|---|
| Plate Size (mm) | 100*100 |
| Printing Area (mm) | 60*60 |
| Max Workpiece Height (mm) | 180 |
| Printing Color | 2 Colors |
| Print Speed (pcs/hour) | 1500 |
| Power | 110V/220V 50/60HZ, 40W, 6Bar |
| Dimension (mm) | 860*710*1400 |
| Weight (kg) | 166 |
About Dongguan Hao'an Printing Machinery Co., Ltd.
Established in 2016, we are a professional manufacturer of automated printing equipment. Our product range includes silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment that can meet printing requirements for various shapes and materials.
Our machinery is widely used in cosmetics, daily necessities, food, medical supplies, automotive accessories, and other industries. Equipment is exported to Europe, the United States, South Korea, the Middle East, South Africa, Mexico, and other regions, earning trust from domestic and international customers.
We adhere to five core concepts: efficiency, excellence, energy conservation, integrity, and win-win. Our professional R&D team can customize machinery according to specific customer requirements and continuously innovate to make products intelligent and efficient. We provide not only excellent equipment but also professional technical training and comprehensive support services.
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary.
What inks does the machine support?
We use UV-based environmentally friendly inks and imported environmentally friendly inks.
What certifications can you provide?
We have ISO9001, SGS, and RoHS certifications.
