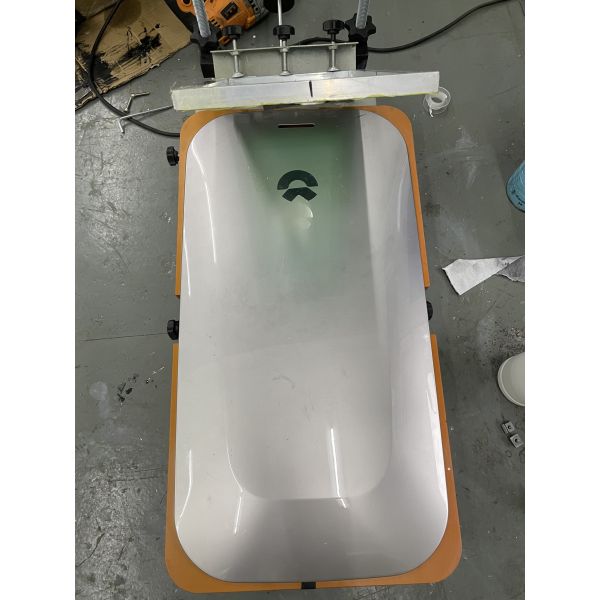

Single Color Semi Automatic Pad Printing Machine
Designed for printing large industrial products with precision and efficiency.
Product Features
This monochrome pad printing machine features an oil basin type oil supply system and microelectronic keyboard control interface with independent adjustment functions for the pad's vertical stroke and speed. Equipped with a workbench adjustable in X, Y, Z axes and angle, it offers wide application scope, high printing efficiency, and straightforward operation.
- Capable of meeting graphic printing demands on various surfaces (flat, curved, irregular)
- Widely applied in electronics, electrical appliances, hardware, plastics, toys, and stationery industries
- Enhanced sturdiness with thickened square tube frame construction
- Smooth, bright surface with baked paint finish
- Elegant and durable appearance with CNC machined and oxidized accessories
Oil Supply System
The oil basin type oil supply system provides a large printing area, convenient installation and disassembly, and greater operational flexibility. After preparing the printing ink, it can be directly poured into the oil basin to start printing, simplifying the workflow.
Technical Parameters
| Item | Specification |
|---|
| Plate Size (mm) | 150×150 |
| Printing Area (mm) | 110×110 |
| Max Workpiece Height (mm) | 300 |
| Print Speed (pcs/hour) | 1500 |
| Power | 110V/220V 50/60HZ, 40W, 6Bar |
| Dimension (mm) | 890×630×1450 |
| Weight (kg) | 155 |
About Dongguan Hao'an Printing Machinery Co., Ltd.
Established in 2016, we are a professional manufacturer of automated printing equipment. Our product range includes silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment that can meet printing requirements of various shapes and materials.
Our machinery is widely used in cosmetics, daily necessities, food, medical supplies, automotive accessories, and other industries. We export to Europe, the United States, South Korea, the Middle East, South Africa, Mexico, and other regions, earning high trust from domestic and international customers.
We adhere to the core concepts of "efficiency, excellence, energy conservation, integrity, and win-win," providing customers with suitable technical solutions. Our professional R&D team customizes machinery according to customer requirements and continuously innovates to make products intelligent and efficient.
We provide not only excellent machinery but also professional technical training and comprehensive support services.
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary.
What inks does the machine support?
We use UV-based environmentally friendly inks and imported environmentally friendly inks.
What certifications can you provide?
We have ISO9001, SGS, and RoHS certifications.
